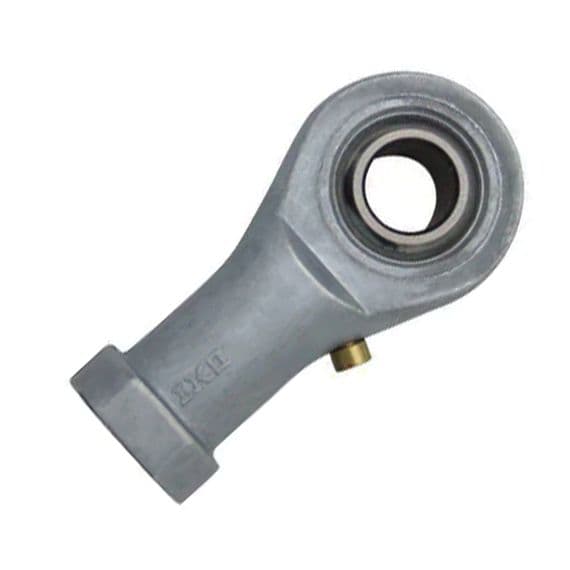

IKO PHS22A 22mm Bore Female Rod End M22x1.5 Lubrication Type PILLOBALL DIE-CAST Right Hand Thread

Gender: Female

Connection Thread: Metric

Bore Size: 22mm

Connection Thread Size: M22x1.5

Ball Width: 32mm

Liner Material: Spherical Inner Ring with a Mirror Finish

Body: Die Cast Special Zinc Alloy

Brand: IKO

PILLOBALLS are compact self-aligning spherical plain bushings which can support a large radial load and a bi-directional axial load at the same time. PILLOBALL ROD ENDS have either a female thread in the body or a male thread on the body, so they can be easily assembled onto machine. Pilloballs are used in control and link mechanisms in machine tools, textile machines, packaging machines etc.

View or Download IKO PHSA Technical Datasheet

View or Download Datasheet about IKO Pilloballs
