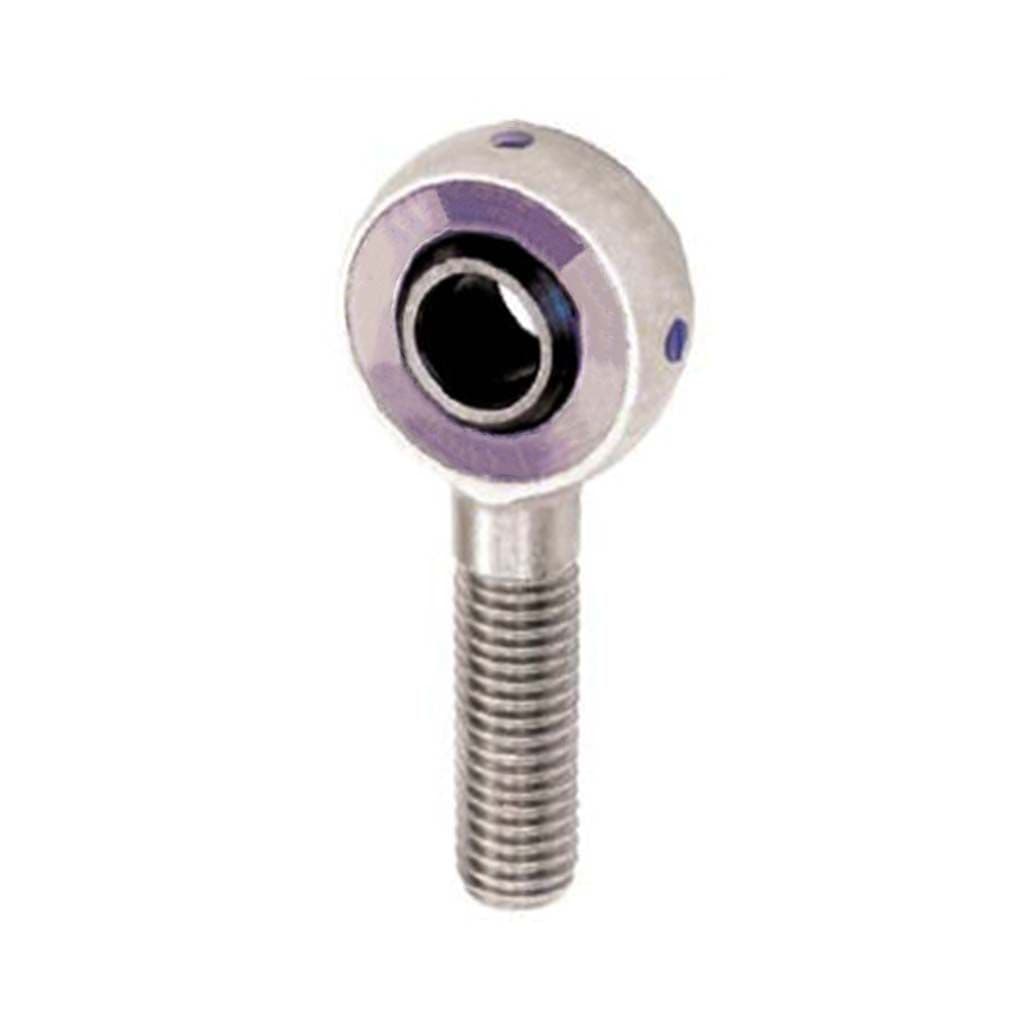

MH10 10mm Bore Male Rod End Right Hand M10x1.5 Thread
Gender: Male
Connection Thread: Metric
Bore Size (B): 10mm
Connection Thread Size: M10x1.5
Ball Width (W): 14mm
Liner Material: Polyurethane
Brand: Standard
View or Download MH Series Technical Datasheet
About MH Series
Unique internationally patented range of male rod ends incorporating a polyurethane bearing race that provides ultra smooth operation. A nitrotec surface protected ball with a PTFE lubricant provide superior shock load and extended wear properties, combined with excellent chemical land corrosion resistance. The unique innovative captive body design prevents detachment through excessive axial loads. For optimum performance, ensure that the rod end is mounted with the moulded lettering facing away from the direction of pull.
Material Specifications:
Housing Steel 230M07PB zinc plated and clear trivalent passivate. Race: Polyurethene. Ball: 230M07PB nitrotec finish. Stud: Steel 230M07PB zinc plated and clear trivalent passivate and stainless steel 303C. Lubricant: Uniflor oil.
Features: Metric & Imperial sizes, Ultra low friction, High shock loads, Extended wear life, No maintenance, Studded Option.
Possible Applications: Light to medium, Construction equipment, Agricultural equipment, Recreational vehicles, High precision motion control, Safety features.
Temperature Ranges: -40°C to +80°C
Specification: ELV & RoHS compliant
