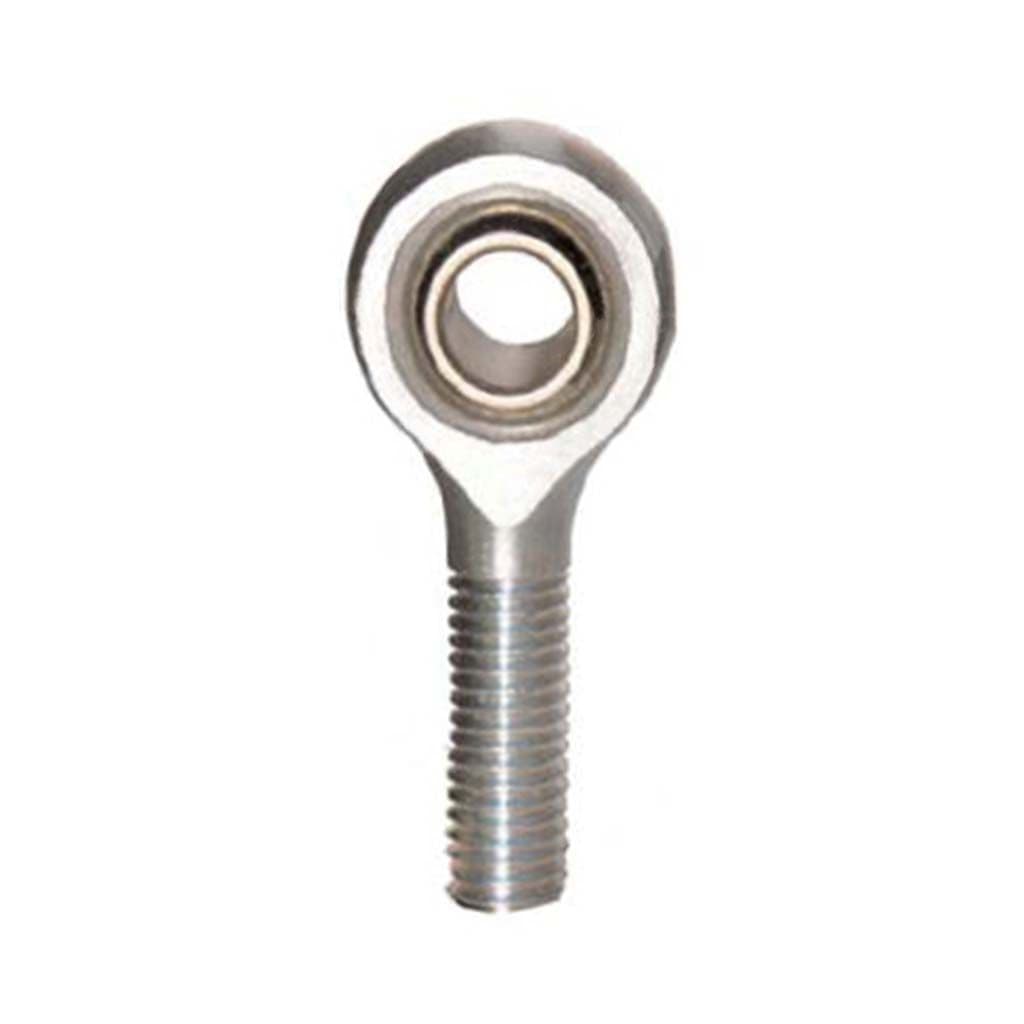

MP-M06 6mm Bore Male Rod End Left Hand M6X1 Thread
Gender: Male
Connection Thread: Metric
Bore Size (B): 6mm
Connection Thread Size: M6x1
Ball Width (W): 9mm
Thread Length: 25mm
Liner Material: Nylon
Brand: Standard
View or Download MP Series Technical Datasheet
About MP Series
Standard range of self lubricating general purpose male rod ends suitable for light to medium heavy industrial/mechanical load applications requiring low friction and good wear resistance, available in both metric and imperial bore and thread sizes. They have excellent moisture resistance and require no maintenance and have a wide operating temperature range.
Material Specifications
Housing: Steel 230M07PB and forged 080M46, zinc plated and clear trivalent plastic and stainless steel 303L & 304 forged. Race: GR-nylon LV-3H. Ball: Bearing steel 100Cr6, hardened and electroless nickel plated and stainless steel 440C and *SAE660. Stud: Steel 230M07PB zinc plated and clear trivalent passivate and stainless steel 303L.
Features: Metric & imperial thread & bore sizes, Low friction, Self-lubricating, ,Good wear resistance, Excellent moisture resistance, Studded option.
Possible Applications: Light to medium/ heavy industrial/mechanical applications, Construction equipment, Agricultural equipment, Recreational vehicles, Precision equipment, No maintenance, Linear movement.
Temperature Range: -30°C to 170°C
Specification: ELV & RoHS compliant
