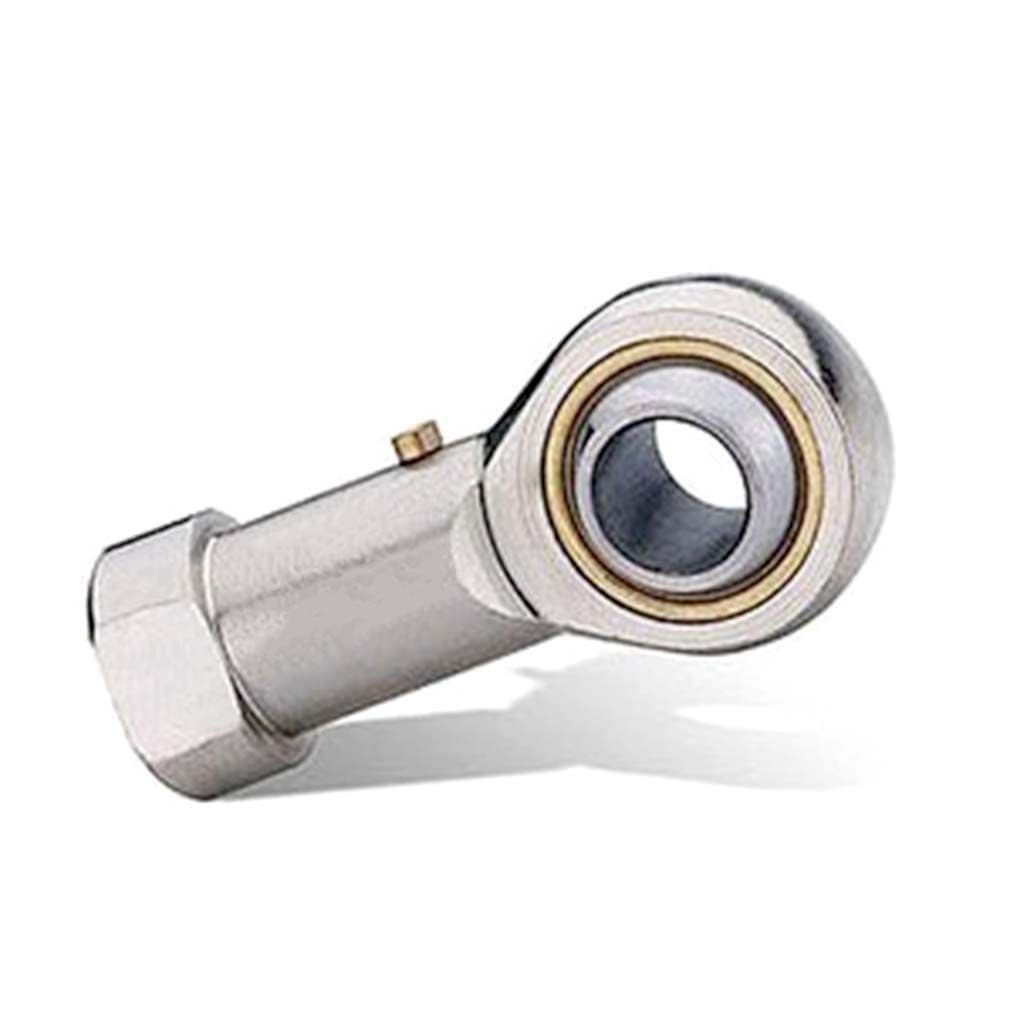

PHS10 10mm Bore Female Rod End Left Hand M10 Thread

Product Description

PHS10 10mm Bore Female Rod End Left Hand M10 Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter10mm
ThreadM10x1.5 Left Hand
Length56mm
Head Diameter26mm
Housing Width10.5mm
Ball Width14mm
d112.9mm
h143mm
L320mm
L56.5mm
d419mm
d517mm
SW19.05mm
Dynamic Load Rating (KN)7.5
Static Load Rating (KN)16.6

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.

Specifications

Brand
Budget
Product Code
PHSL10
