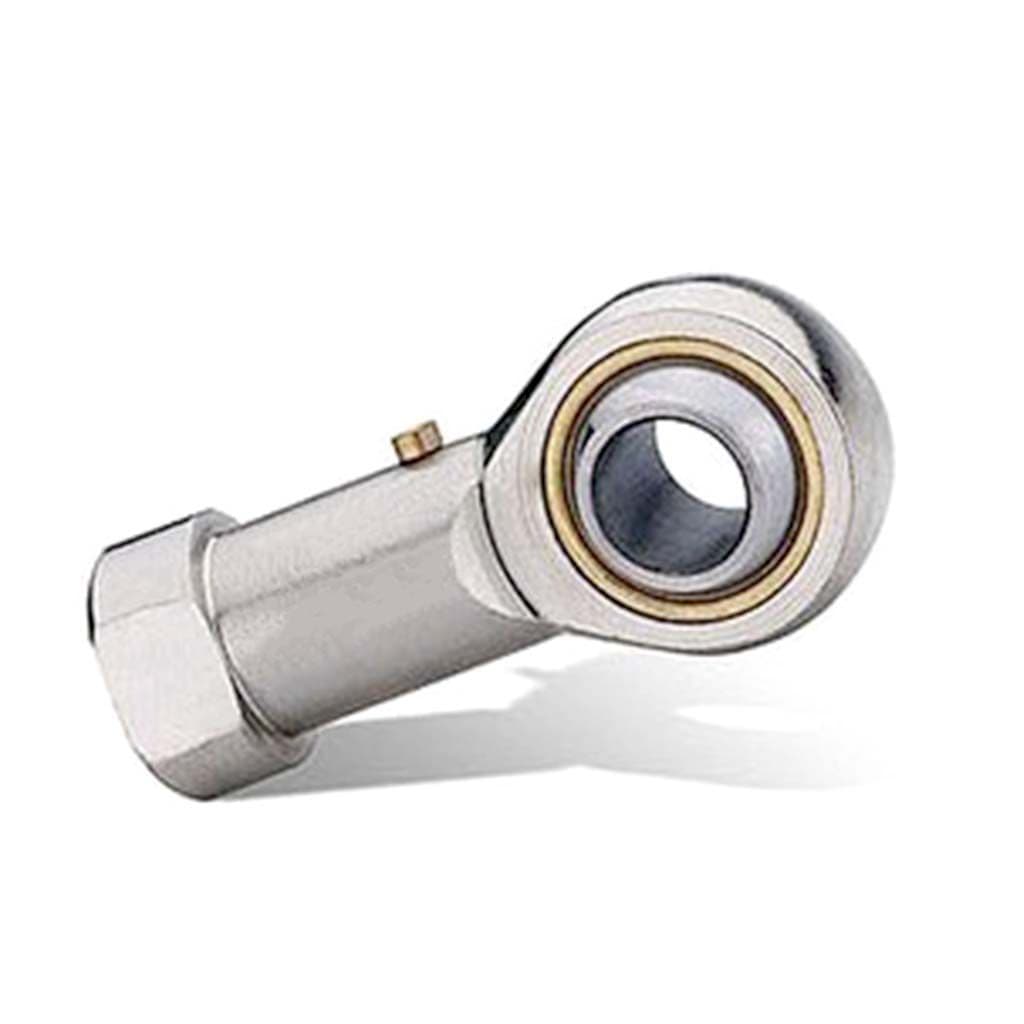

PHS20 20mm Bore Female Rod End Right Hand M20X1.5 Thread

Product Description

PHS20 20mm Bore Female Rod End Right Hand M20X1.5 Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter20mm
ThreadM20x1.5 Right Hand
Length100mm
Head Diameter46mm
Housing Width18mm
Ball Width25mm
d124.3mm
h177mm
L339mm
L510mm
d434mm
d530mm
SW34.92mm
Dynamic Load Rating (KN)23
Static Load Rating (KN)46.5

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.
