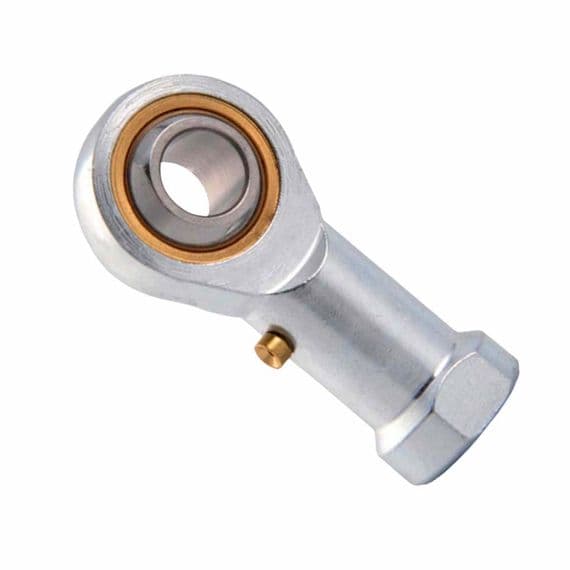

PHSB5 Right Hand 5/16 Inch Bore Female Rod End Right Hand 5/16 UNF Thread

Product Description

PHSB5 Right Hand 5/16 Inch Bore Female Rod End Right Hand 5/16 UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter7.938mm = 5/16"
Thread5/16-24 UNF Left Hand
Length46.03mm
Head Diameter22.23mm
Housing Width8.74mm
Ball Width11.1mm
d111.35mm
h134.93mm
L317.45mm
L54.75mm
d412.7mm
d511.1mm
SW15.87mm
Dynamic Load Rating (KN)5.9
Static Load Rating (KN)13.8

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.
