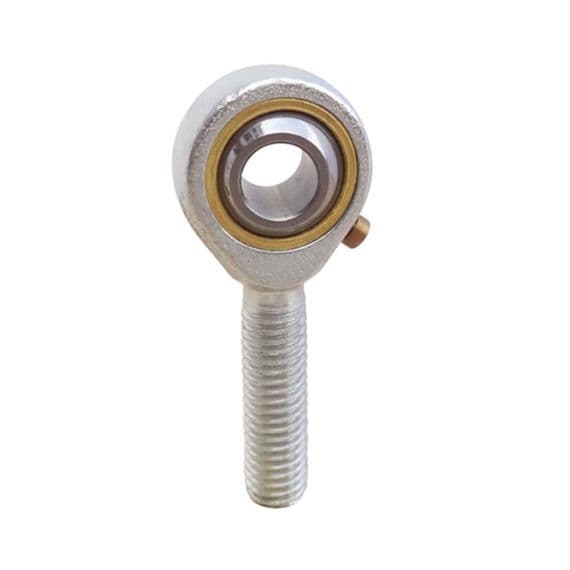

POSB10L 5/8 Inch Bore Male Rod End Left Hand 5/8 -18UNF Thread

Product Description

POSB10L 5/8 Inch Bore Male Rod End Left Hand 5/8 -18UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter15.875mm=5/8"
Thread5/8 -18UNF Left Hand
Length85.73mm
Head Diameter38.1mm = 1-1/2"
Housing Width14.27mm
d121.31mm
h66.68mm
L141.28mm
Dynamic Load Rating (KN)18
Static Load Rating (KN)26.7

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.

Specifications

Brand
Budget
Product Code
POSB10L

Customer reviews

No reviews left yet
Write A Review

POSB10L 5/8 Inch Bore Male Rod End Left Hand 5/8 -18UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter15.875mm=5/8"
Thread5/8 -18UNF Left Hand
Length85.73mm
Head Diameter38.1mm = 1-1/2"
Housing Width14.27mm
d121.31mm
h66.68mm
L141.28mm
Dynamic Load Rating (KN)18
Static Load Rating (KN)26.7

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.
Brand
Budget
Product Code
POSB10L
