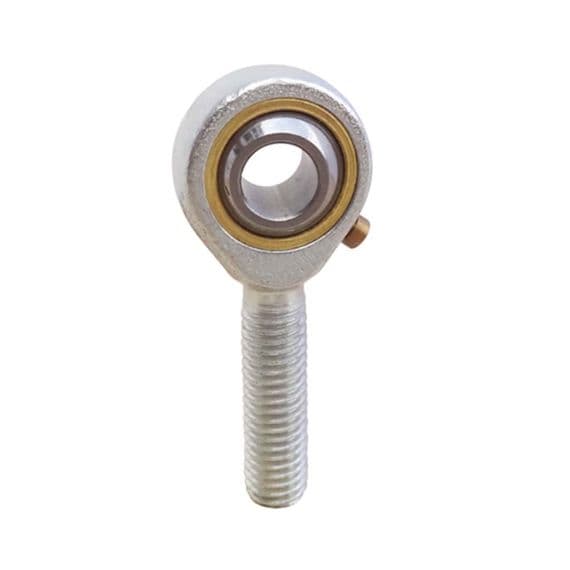

POSB16 1 Inch Bore Male Rod End Right Hand 1-1/4 -12UNF Thread

Product Description

POSB16 1 Inch Bore Male Rod End Right Hand 1-1/4 -12UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter25.4mm=1"
Thread1-1/4 -12UNF Right Hand
Length139.7mm
Head Diameter69.85mm=2-3/4"
Housing Width25.4mm=1"
Ball Width34.93mm
d132.23mm
h104.78mm
L153.98mm
Dynamic Load Rating (KN)60
Static Load Rating (KN)101

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.

Specifications

Brand
Budget
Product Code
POSB16

Customer reviews

No reviews left yet
Write A Review

POSB16 1 Inch Bore Male Rod End Right Hand 1-1/4 -12UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter25.4mm=1"
Thread1-1/4 -12UNF Right Hand
Length139.7mm
Head Diameter69.85mm=2-3/4"
Housing Width25.4mm=1"
Ball Width34.93mm
d132.23mm
h104.78mm
L153.98mm
Dynamic Load Rating (KN)60
Static Load Rating (KN)101

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.
Brand
Budget
Product Code
POSB16
No reviews left yet
Write A Review
