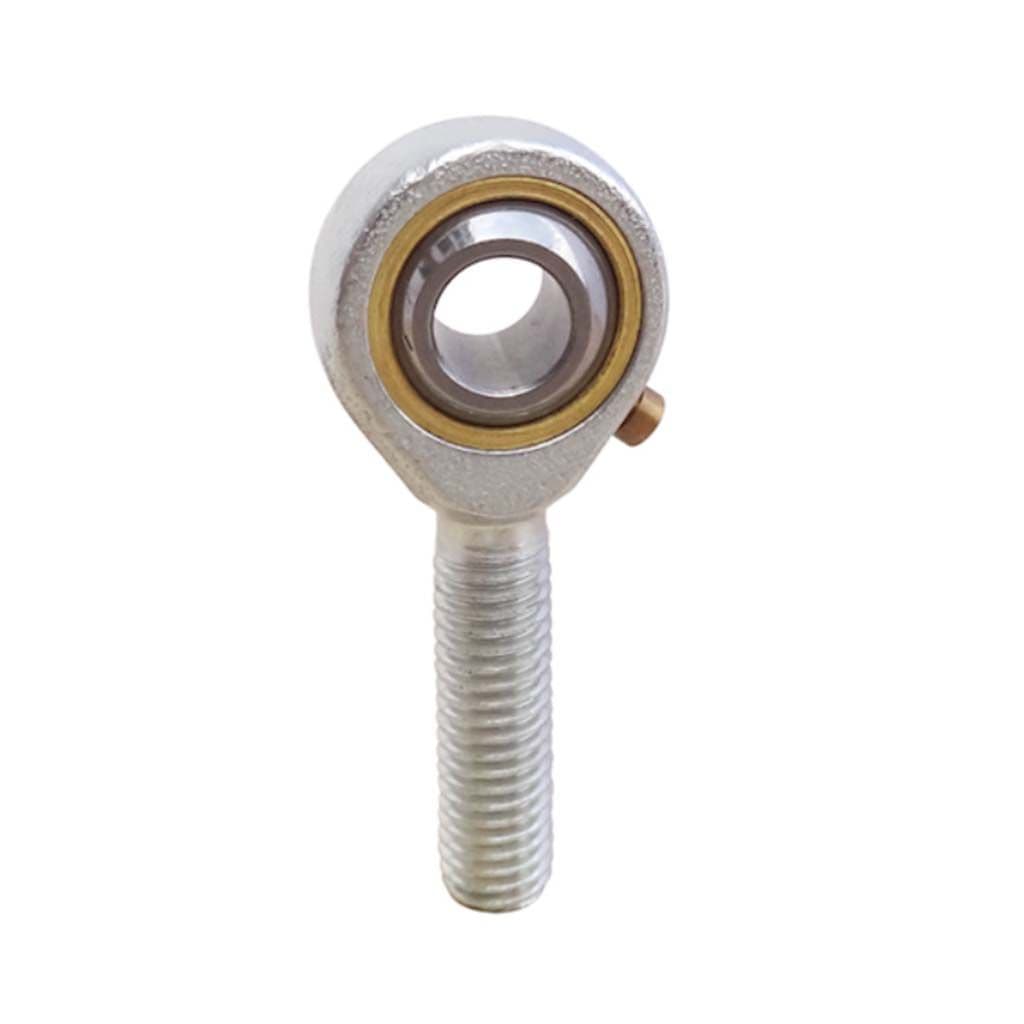

POSB16L 1 Inch Bore Male Rod End Left Hand 1-1/4 -12UNF Thread

Product Description

POSB16L 1 Inch Bore Male Rod End Left Hand 1-1/4 -12UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter25.4mm=1"
Thread1-1/4 -12UNF Right Hand
Length139.7mm
Head Diameter69.85mm=2-3/4"
Housing Width25.4mm=1"
Ball Width34.93mm
d132.23mm
h104.78mm
L153.98mm
Dynamic Load Rating (KN)60
Static Load Rating (KN)101
