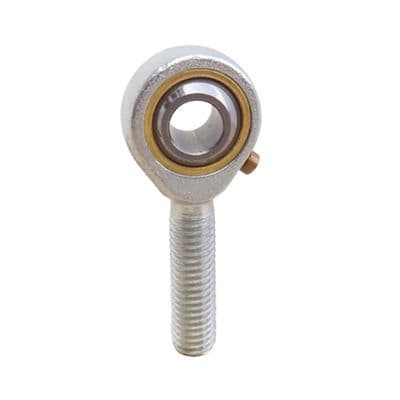

POSB4L 1/4 Inch Bore Male Rod End Left Hand 1/4 -28 UNF Thread

Product Description

POSB4L 1/4 Inch Bore Male Rod End Left Hand 1/4 -28 UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter6.35mm = 1/4"
Thread1/4-28 UNF Left Hand
Length49.2mm
Head Diameter19.05mm=3/4"
Housing Width7.14mm
Ball Width9.53mm
d19.02mm
h39.67mm
L125.4mm
Dynamic Load Rating (KN)4.8
Static Load Rating (KN)6.4

Not the right product? Contact our sales team if you cannot find what you are looking for at sales@rodends.co.uk or +44 (0)1753 687 888.
