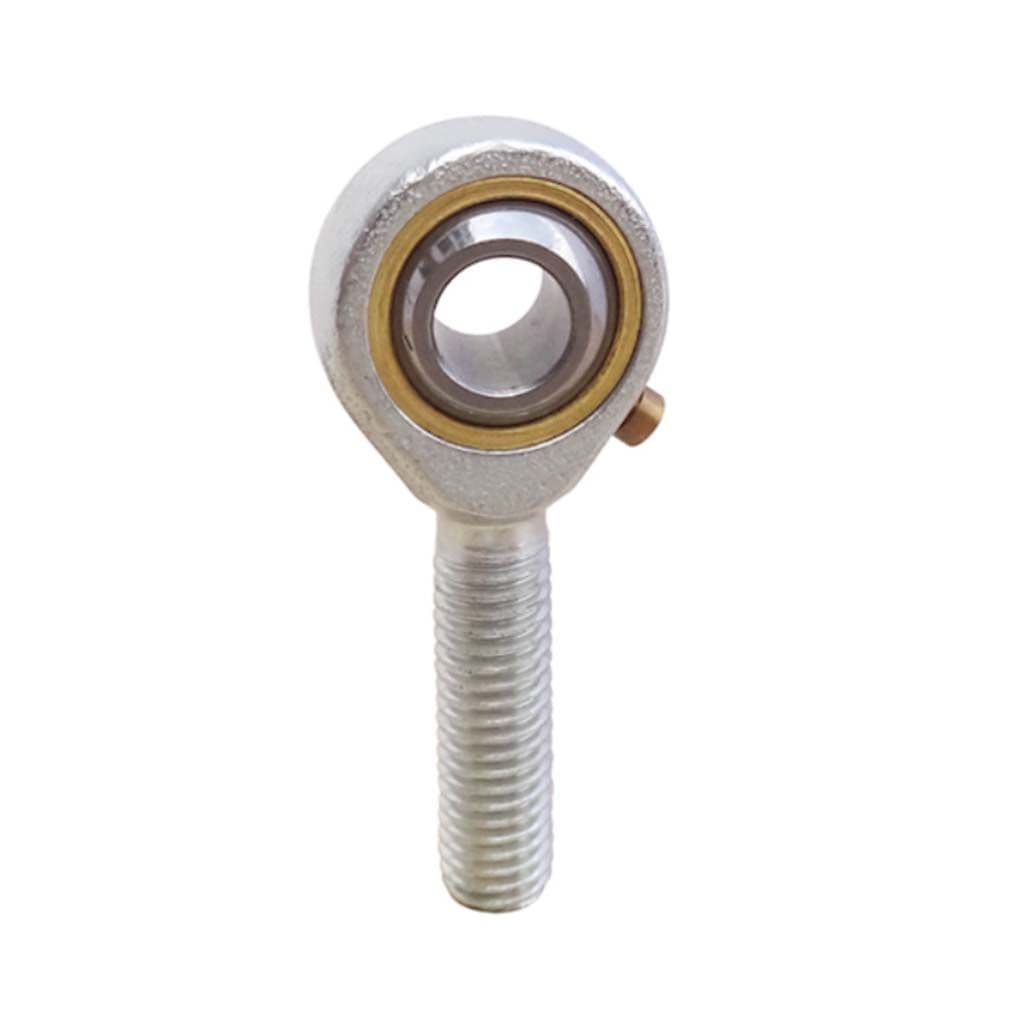

POSB5L 5/16 Inch Bore Male Rod End Left Hand 5/16 -24UNF Thread

Product Description

POSB5L 5/16 Inch Bore Male Rod End Left Hand 5/16 -24UNF Thread

BodyCarbon Steel, Zinc Plated, Chromate Treated
BallGcr15 Steel, heat treated, HRC58-64°; Precision
Contact SurfacesSteel/Brass
Bore Diameter7.938mm=5/16"
Thread5/16-24 UNF Left Hand
Length58.75mm
Head Diameter22.23mm
Housing Width8.74mm
Ball Width11.1mm
d111.35mm
h47.63mm
L131.75mm
Dynamic Load Rating (KN)5.9
Static Load Rating (KN)8.7
